1. Friviaa

24.8.10 created
24.8.11 updated

1.1. 创建项目

localhost:flutter chenchangqing$ flutter create friviaa
Creating project friviaa...
Running "flutter pub get" in friviaa...                             3.3s
Wrote 127 files.

All done!
In order to run your application, type:

  $ cd friviaa
  $ flutter run

Your application code is in friviaa/lib/main.dart.

增加依赖：

  get_it: "7.2.0"
  dio: "4.0.4"
  provider: "6.0.2"

1.2. 自定义字体

1.2.1. 下载字体

打开 https://fonts.google.com
搜索architects，点击Architects Daughter
在字体详情页面右上角，点击Get font下载

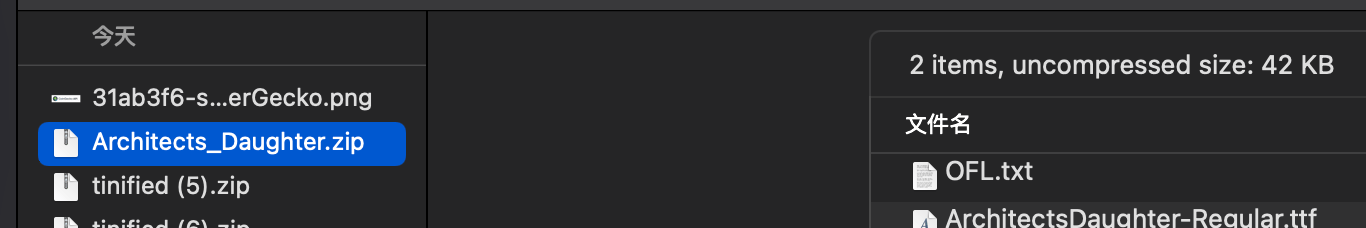

下载结果为Architects_Daughter.zip

1.2.2. 加载字体

新建assets/fonts
解压Architects_Daughter.zip
将解压后的文件ArchitectsDaughter-Regular.ttf粘贴至assets/fonts

修改.yaml：

fonts:
 - family: ArchitectsDaughter
   fonts:
     - asset: assets/fonts/ArchitectsDaughter-Regular.ttf

1.2.3. 应用字体

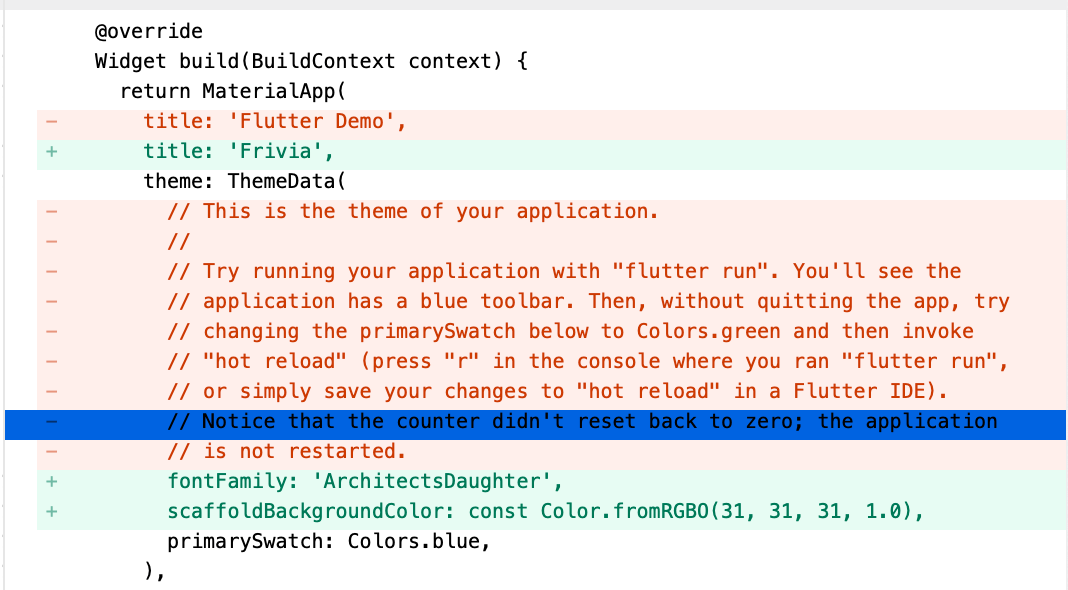

修改main.dart:

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Frivia',
      theme: ThemeData(
        fontFamily: 'ArchitectsDaughter',
        scaffoldBackgroundColor: const Color.fromRGBO(31, 31, 31, 1.0),
        primarySwatch: Colors.blue,
      ),
      home: const MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }

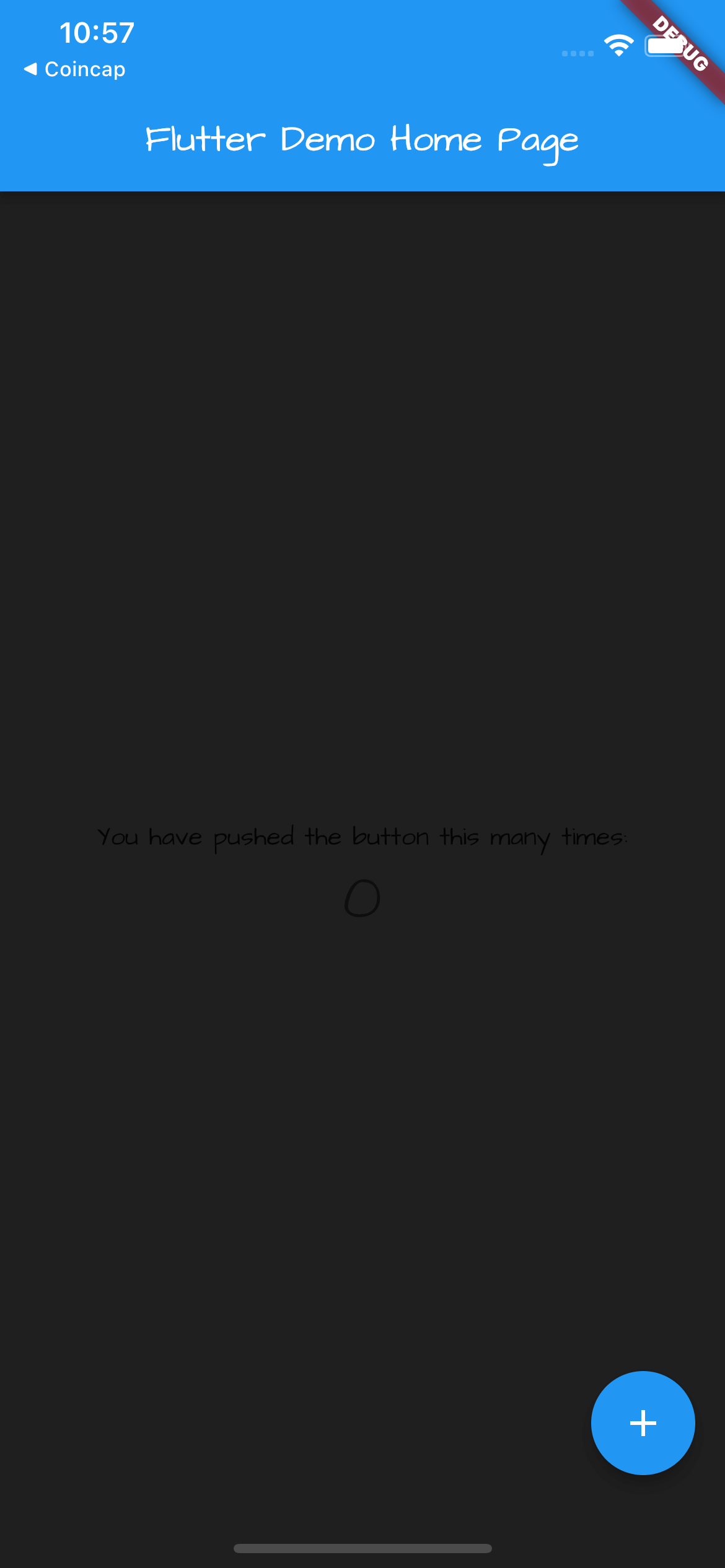

1.2.4. 当前UI

1.3. 生成API

打开 https://opentdb.com/api_config.php
Select Difficulty: Easy
Select Type: True/False
点击GENERATE API URL

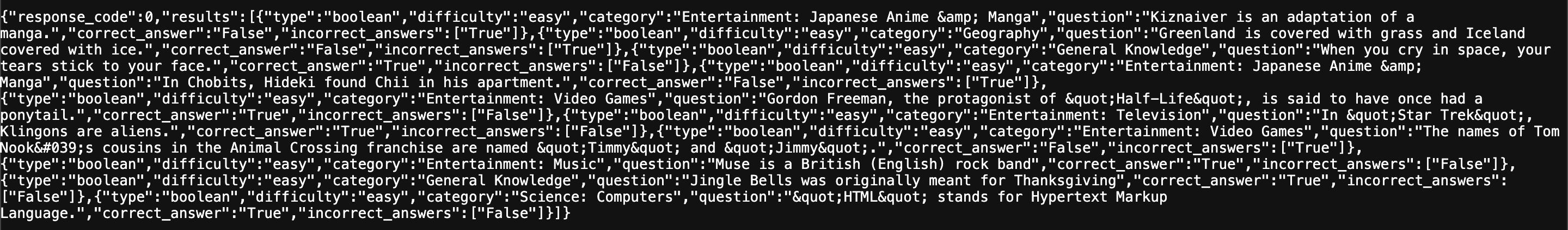

生成 https://opentdb.com/api.php?amount=10&difficulty=easy&type=boolean API

{ "response_code": 0, "results": [ { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Video Games", "question": "In Splatoon, the Squid Sisters are named Tako and Yaki.", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Japanese Anime & Manga", "question": "Kiznaiver is an adaptation of a manga.", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Sports", "question": "In Rugby League, performing a "40-20" is punished by a free kick for the opposing team.", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Books", "question": "Shub-Niggurath is a creature that was created by \tJ. R. R. Tolkien in his novel "The Lord of The Rings".", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Science: Mathematics", "question": "An isosceles triangle has two sides of equal length as opposed to three.", "correct_answer": "True", "incorrect_answers": [ "False" ] }, { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Video Games", "question": "In RuneScape, one must complete the "Dragon Slayer" quest before equipping Rune Platelegs.", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Video Games", "question": "Watch_Dogs 2 is a prequel.", "correct_answer": "False", "incorrect_answers": [ "True" ] }, { "type": "boolean", "difficulty": "easy", "category": "Entertainment: Video Games", "question": "Peter Molyneux was the founder of Bullfrog Productions.", "correct_answer": "True", "incorrect_answers": [ "False" ] }, { "type": "boolean", "difficulty": "easy", "category": "History", "question": "The Spitfire originated from a racing plane.", "correct_answer": "True", "incorrect_answers": [ "False" ] }, { "type": "boolean", "difficulty": "easy", "category": "Animals", "question": "In 2016, the IUCN reclassified the status of Giant Pandas from endangered to vulnerable.", "correct_answer": "True", "incorrect_answers": [ "False" ] } ] }

1.4. GamePage

1.4.1. 新建pages/game_page.dart

import 'package:flutter/material.dart';

class GamePage extends StatelessWidget {
  double? _deviceHeight, _deviceWidth;
  GamePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    _deviceHeight = MediaQuery.of(context).size.height;
    _deviceWidth = MediaQuery.of(context).size.width;
    return _buildUI();
  }

  Widget _buildUI() {
    return Scaffold(
      body: SafeArea(
        child: Container(
          padding: EdgeInsets.symmetric(horizontal: _deviceHeight! * 0.05),
          child: _gameUI(),
        ),
      ),
    );
  }

  Widget _gameUI() {
    return Column(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      mainAxisSize: MainAxisSize.max,
      crossAxisAlignment: CrossAxisAlignment.center,
      children: [_questionText()],
    );
  }

  Widget _questionText() {
    return const Text(
      "Test Question 1, Nothing Interesting",
      style: TextStyle(
          color: Colors.white, fontSize: 25, fontWeight: FontWeight.w400),
    );
  }
}

1.4.2. 修改main.dart

import 'package:flutter/material.dart';
import 'package:friviaa/pages/game_page.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Frivia',
      theme: ThemeData(
        fontFamily: 'ArchitectsDaughter',
        scaffoldBackgroundColor: const Color.fromRGBO(31, 31, 31, 1.0),
        primarySwatch: Colors.blue,
      ),
      home: GamePage(),
    );
  }
}

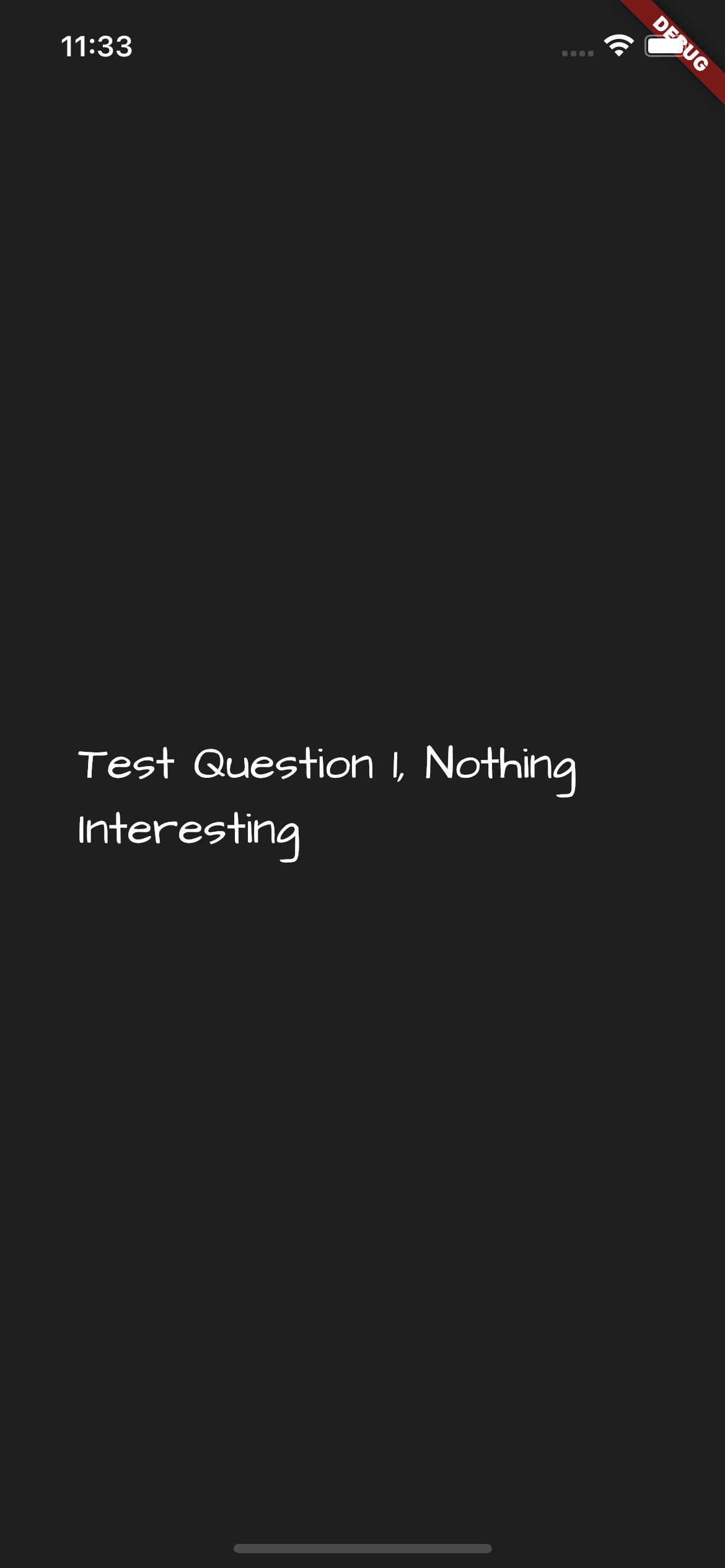

1.4.3. 当前UI

1.5. 增加True/False按钮

1.5.1. 增加按钮组件

  Widget _trueButton() {
    return MaterialButton(
      onPressed: () {},
      color: Colors.green,
      minWidth: _deviceWidth! * 0.80,
      height: _deviceHeight! * 0.10,
      child: const Text(
        "True",
        style: TextStyle(
          color: Colors.white,
          fontSize: 25,
        ),
      ),
    );
  }

  Widget _falseButton() {
    return MaterialButton(
      onPressed: () {},
      color: Colors.red,
      minWidth: _deviceWidth! * 0.80,
      height: _deviceHeight! * 0.10,
      child: const Text(
        "False",
        style: TextStyle(
          color: Colors.white,
          fontSize: 25,
        ),
      ),
    );
  }

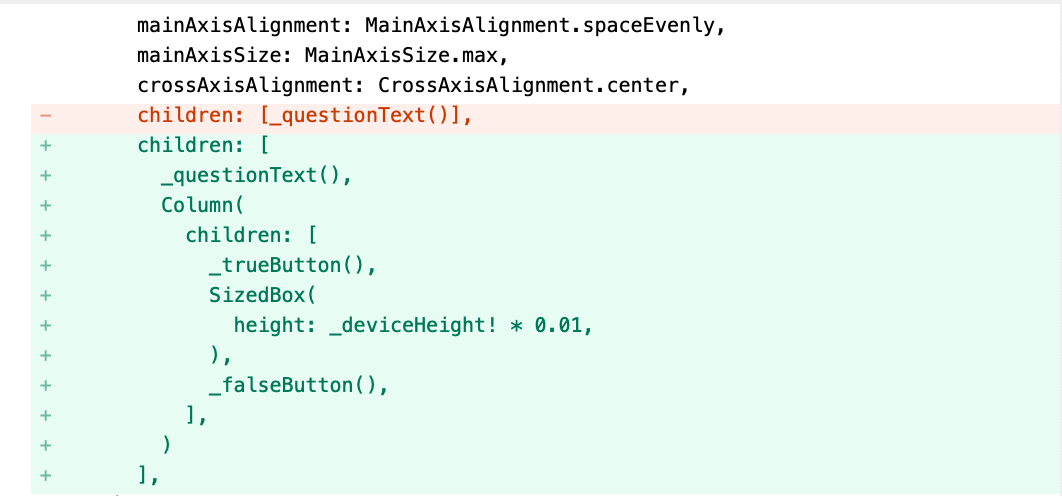

1.5.2. 修改_gameUI方法

  Widget _gameUI() {
    return Column(
      mainAxisAlignment: MainAxisAlignment.spaceEvenly,
      mainAxisSize: MainAxisSize.max,
      crossAxisAlignment: CrossAxisAlignment.center,
      children: [
        _questionText(),
        Column(
          children: [
            _trueButton(),
            SizedBox(
              height: _deviceHeight! * 0.01,
            ),
            _falseButton(),
          ],
        )
      ],
    );
  }

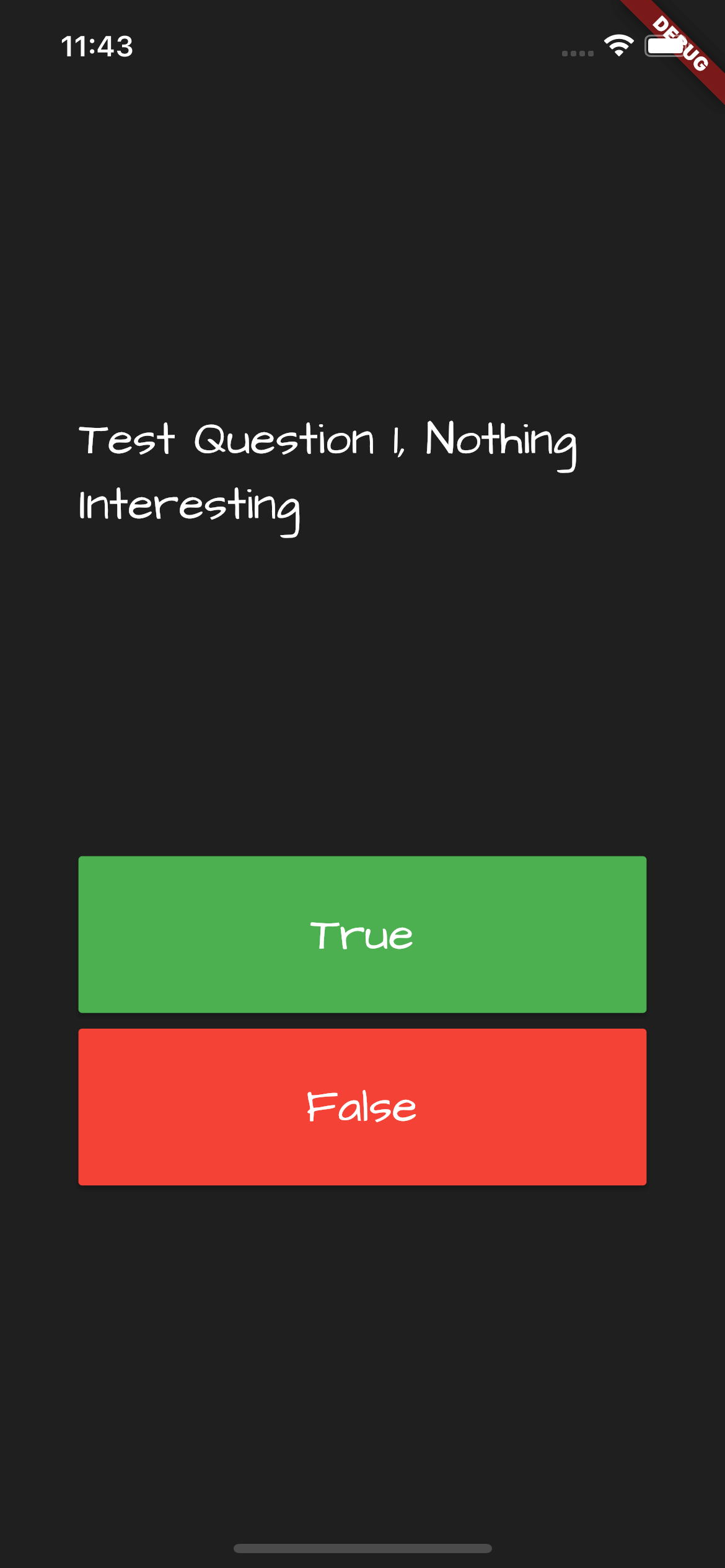

1.5.3. 当前UI

1.6. Use Provider

1.6.1. 新增providers/game_page_provider.dart

import 'package:dio/dio.dart';
import 'package:flutter/material.dart';

class GamePageProvider extends ChangeNotifier {
  final Dio _dio = Dio();

  BuildContext context;
  GamePageProvider({required this.context}) {
    _dio.options.baseUrl = 'https://opentdb.com/api.php';
    print("Hello");
  }
}

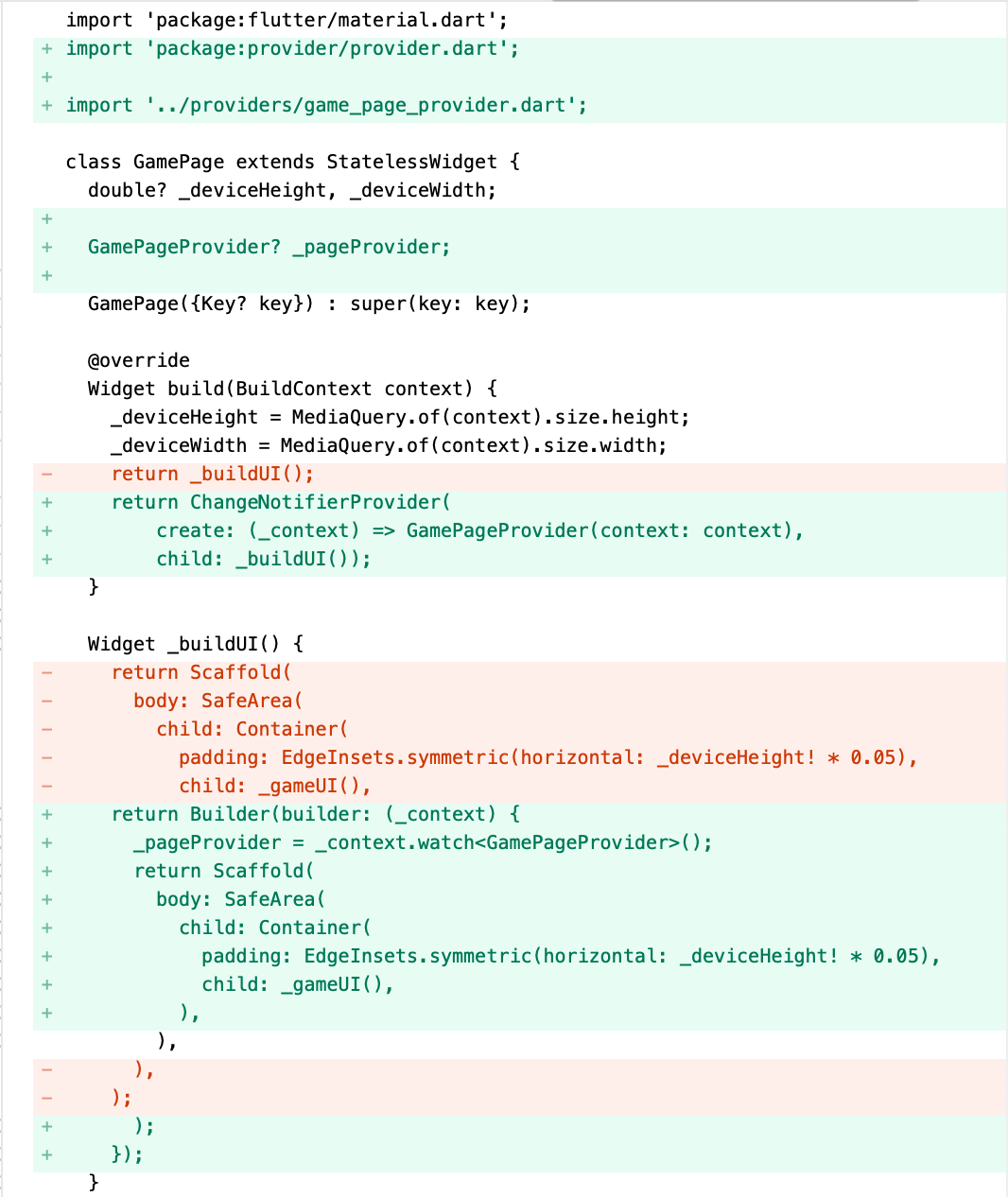

1.6.2. 修改game_page.dart

1.7. 请求数据

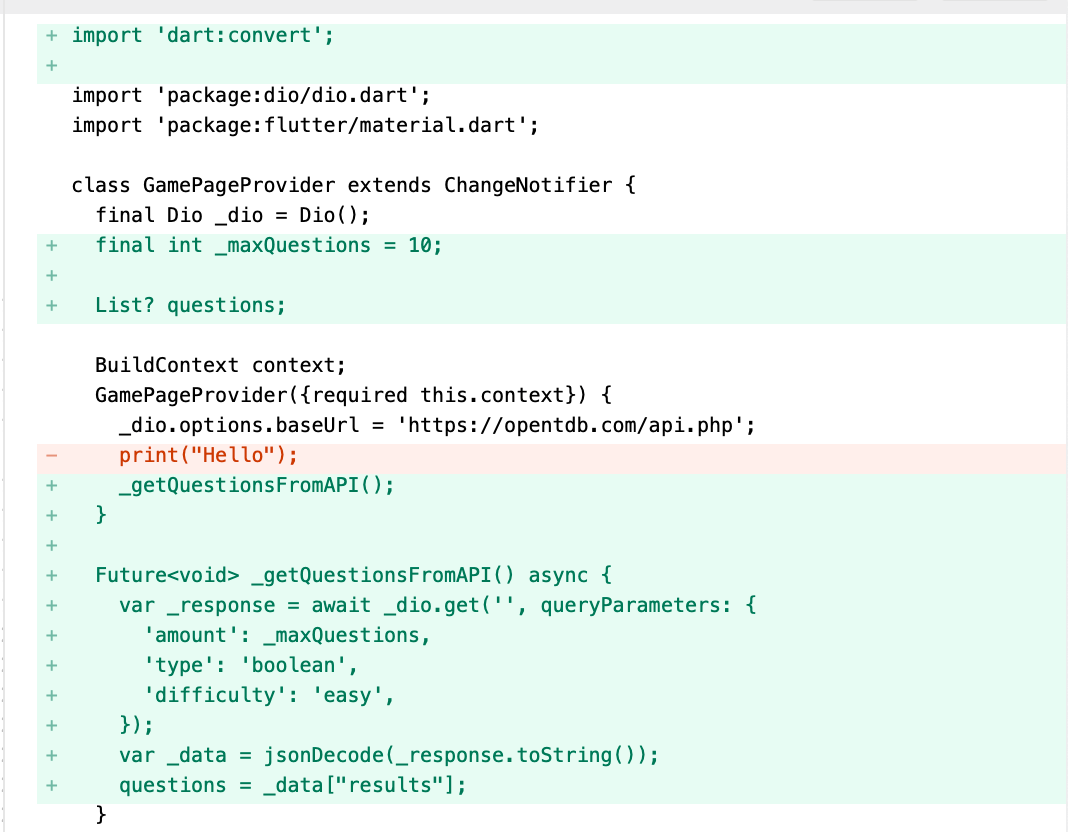

修改game_page_provider.dart:

  Future<void> _getQuestionsFromAPI() async {
    var _response = await _dio.get('', queryParameters: {
      'amount': _maxQuestions,
      'type': 'boolean',
      'difficulty': 'easy',
    });
    var _data = jsonDecode(_response.toString());
    questions = _data["results"];
  }

1.8. 显示问题名称

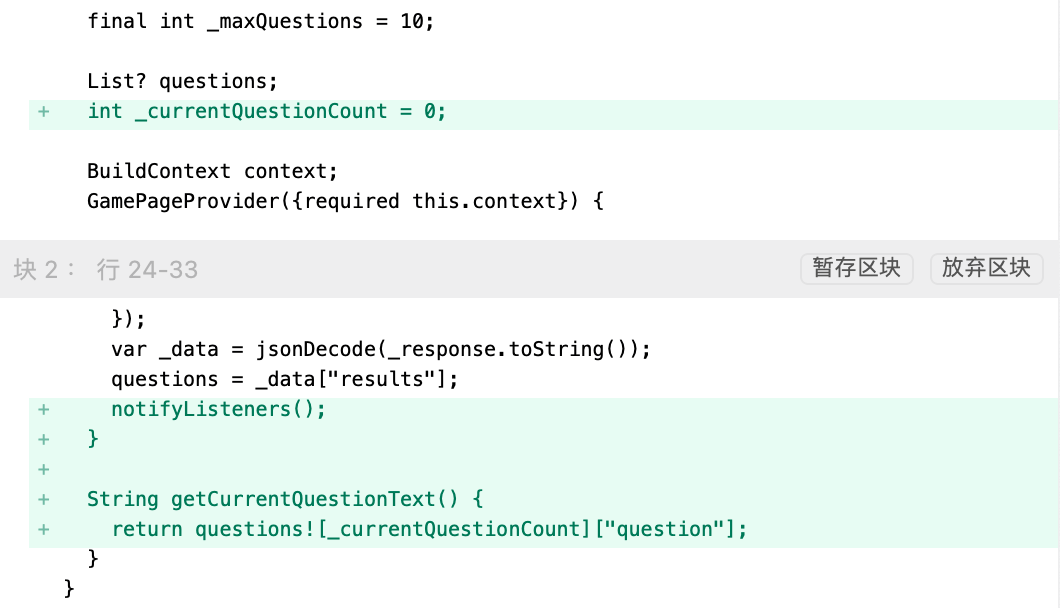

1.8.1. 修改game_page_provider.dart

1.8.2. 修改game_page.dart中_buildUI:

  Widget _buildUI() {
    return Builder(builder: (_context) {
      _pageProvider = _context.watch<GamePageProvider>();
      if (_pageProvider!.questions != null) {
        return Scaffold(
          body: SafeArea(
            child: Container(
              padding: EdgeInsets.symmetric(horizontal: _deviceHeight! * 0.05),
              child: _gameUI(),
            ),
          ),
        );
      } else {
        return const Center(
          child: CircularProgressIndicator(
            color: Colors.white,
          ),
        );
      }
    });
  }

1.8.3. 修改game_page.dart中_questionText

  Widget _questionText() {
    return Text(
      _pageProvider!.getCurrentQuestionText(),
      style: const TextStyle(
          color: Colors.white, fontSize: 25, fontWeight: FontWeight.w400),
    );
  }

1.9. 点击True/False

1.9.1. 回答问题

修改game_page_provider.dart，新增方法：

  void answerQuestion(String _answer) async {
    bool isCorrect =
        questions![_currentQuestionCount]["correct_answer"] == _answer;
    _currentQuestionCount++;
    print(isCorrect ? "Correct" : "InCorrect");
    notifyListeners();
  }

1.9.2. 点击回答

修改game_page.dart中_trueButton、_falseButton的onPressed:

_pageProvider?.answerQuestion("True");
_pageProvider?.answerQuestion("False");

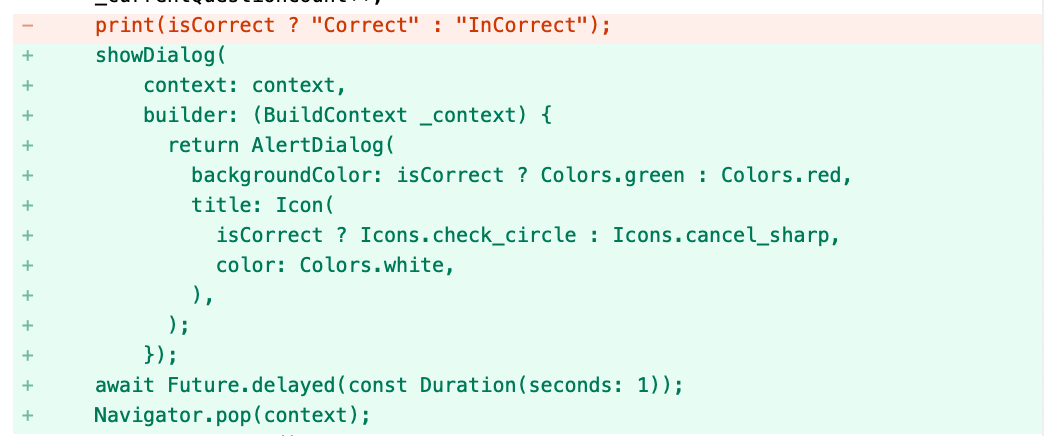

1.10. 显示回答结果

修改game_page_provider.dart中answerQuestion方法：

    showDialog(
        context: context,
        builder: (BuildContext _context) {
          return AlertDialog(
            backgroundColor: isCorrect ? Colors.green : Colors.red,
            title: Icon(
              isCorrect ? Icons.check_circle : Icons.cancel_sharp,
              color: Colors.white,
            ),
          );
        });
    await Future.delayed(const Duration(seconds: 1));
    Navigator.pop(context);

1.11. 显示回答比分

修改game_page_provider.dart，新增int _correctCount = 0;属性

修改game_page_provider.dart中answerQuestion回答方法

void answerQuestion(String _answer) async {
 bool isCorrect =
     questions![_currentQuestionCount]["correct_answer"] == _answer;
 _correctCount += isCorrect ? 1 : 0;
 _currentQuestionCount++;
 showDialog(
     context: context,
     builder: (BuildContext _context) {
       return AlertDialog(
         backgroundColor: isCorrect ? Colors.green : Colors.red,
         title: Icon(
           isCorrect ? Icons.check_circle : Icons.cancel_sharp,
           color: Colors.white,
         ),
       );
     });
 await Future.delayed(const Duration(seconds: 1));
 Navigator.pop(context);
 if (_currentQuestionCount == _maxQuestions) {
   endGame();
 } else {
   notifyListeners();
 }
}

新增方法endGame;

Future<void> endGame() async {
 showDialog(
     context: context,
     builder: (BuildContext builder) {
       return AlertDialog(
         backgroundColor: Colors.blue,
         title: const Text(
           "End Game!",
           style: TextStyle(fontSize: 25, color: Colors.white),
         ),
         content: Text("Score: $_correctCount/$_maxQuestions"),
       );
     });
 await Future.delayed(const Duration(seconds: 3));
 Navigator.pop(context);
 Navigator.pop(context);
}

1.12. 新增首页

新增pages/home_page.dart:

import 'package:flutter/material.dart';

class HomePage extends StatefulWidget {
  const HomePage({Key? key}) : super(key: key);

  @override
  State<HomePage> createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  double? _deviceHeight, _deviceWidth;

  @override
  Widget build(BuildContext context) {
    _deviceHeight = MediaQuery.of(context).size.height;
    _deviceWidth = MediaQuery.of(context).size.width;
    return Scaffold(
      body: SafeArea(
        child: Container(
          padding: EdgeInsets.symmetric(horizontal: _deviceWidth! * 0.10),
          child: Center(
            child: Column(
              mainAxisAlignment: MainAxisAlignment.spaceEvenly,
              mainAxisSize: MainAxisSize.max,
              crossAxisAlignment: CrossAxisAlignment.center,
              children: [_appTitle()],
            ),
          ),
        ),
      ),
    );
  }

  Widget _appTitle() {
    return Column(children: const [
      Text(
        "Frivia",
        style: TextStyle(
            color: Colors.white, fontSize: 50, fontWeight: FontWeight.w500),
      )
    ]);
  }
}

修改main.dart: home: HomePage(),

1.13. 新增Slider

修改home_page.dart

1.13.1. 增加属性:

double _currentDiffcultyLevel = 0;

final List<String> _diffcultyTexts = ["Easy", "Medium", "Hard"];

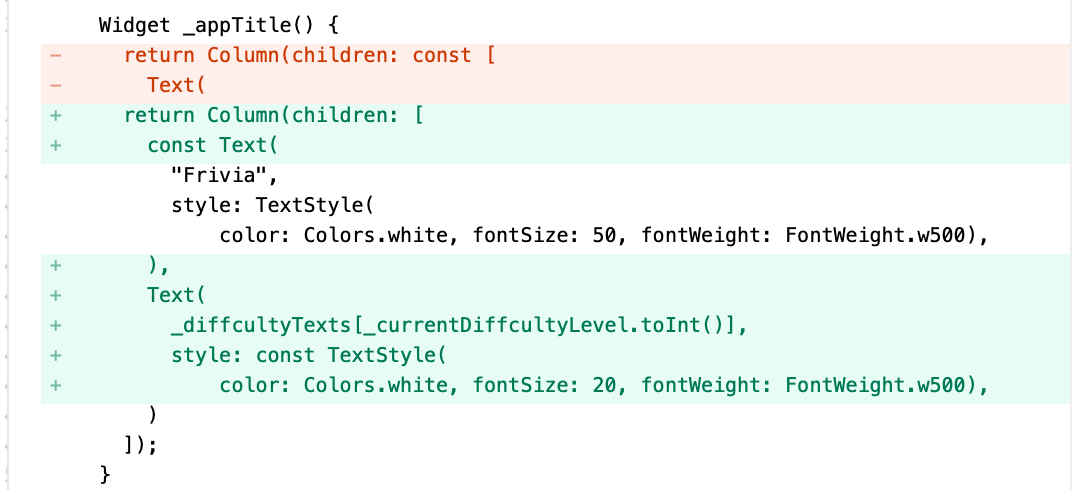

1.13.2. 修改_appTitle：

  Widget _appTitle() {
    return Column(children: [
      const Text(
        "Frivia",
        style: TextStyle(
            color: Colors.white, fontSize: 50, fontWeight: FontWeight.w500),
      ),
      Text(
        _diffcultyTexts[_currentDiffcultyLevel.toInt()],
        style: const TextStyle(
            color: Colors.white, fontSize: 20, fontWeight: FontWeight.w500),
      )
    ]);
  }

1.13.3. 新增_diffcultySlider:

  Widget _diffcultySlider() {
    return Slider(
        label: "Difficulty",
        min: 0,
        max: 2,
        divisions: 3,
        value: _currentDiffcultyLevel,
        onChanged: (_value) {
          setState(() {
            _currentDiffcultyLevel = _value;
          });
        });
  }

1.13.4. 修改build:

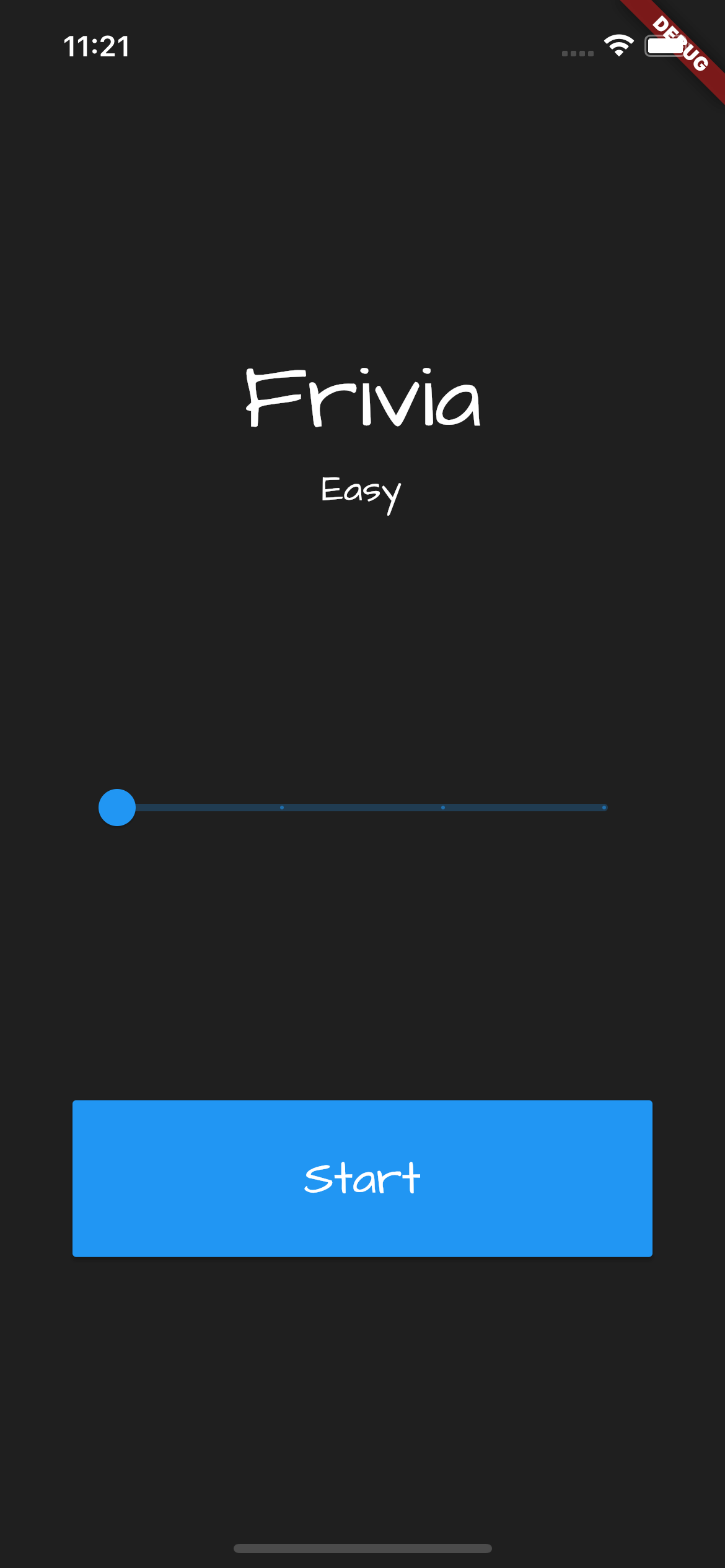

1.14. 开始按钮

1.14.1. import

import 'package:friviaa/pages/game_page.dart';

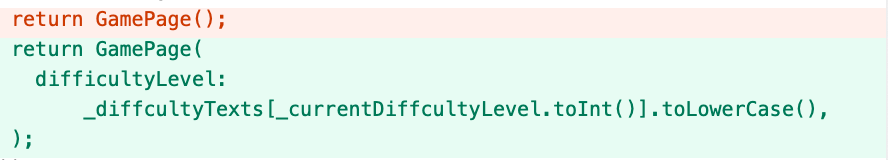

1.14.2. 修改build

1.14.3. 新增开始按钮

  Widget _startGameButton() {
    return MaterialButton(
      onPressed: () {
        Navigator.push(context,
            MaterialPageRoute(builder: (BuildContext _context) {
          return GamePage();
        }));
      },
      color: Colors.blue,
      minWidth: _deviceWidth! * 0.80,
      height: _deviceHeight! * 0.10,
      child: const Text(
        "Start",
        style: TextStyle(color: Colors.white, fontSize: 25),
      ),
    );
  }
